iptables使用

发表于 | 分类于 | 次

iptables使用

结构

image-20220608093532338

包流


iptables监控reset的连接信息

如果连接被reset需要记录下reset包是哪边发出来的，并记录reset连接的四元组信息

iptables规则

1
2
3
4
5
6
7
8
9
10
11
# Generated by iptables-save v1.4.21 on Wed Apr  1 11:39:31 2020
*filter
:INPUT ACCEPT [557:88127]
:FORWARD ACCEPT [0:0]
:OUTPUT ACCEPT [527:171711]
# 不监听3406上的reset，日志前面添加 [plantegg]
-A INPUT -p tcp -m tcp ! --sport 3406  --tcp-flags RST RST -j LOG --log-prefix "[plantegg] " --log-level 7 --log-tcp-sequence --log-tcp-options --log-ip-options
# -A INPUT -p tcp -m tcp ! --dport 3406  --tcp-flags RST RST -j LOG --log-prefix "[plantegg] " --log-level7 --log-tcp-sequence --log-tcp-options --log-ip-options
-A OUTPUT -p tcp -m tcp ! --sport 3406 --tcp-flags RST RST -j LOG --log-prefix "[plantegg] " --log-level 7 --log-tcp-sequence --log-tcp-options --log-ip-options
COMMIT
# Completed on Wed Apr  1 11:39:31 2020

将如上配置保存在 plantegg_filter.conf中，设置开机启动:

1
2
3
//注意，tee 命令的 "-a" 选项的作用等同于 ">>" 命令，如果去除该选项，那么 tee 命令的作用就等同于 ">" 命令。
//echo -1 | sudo tee /proc/sys/kernel/perf_event_paranoid //sudo强行修改写入
echo "sudo iptables-restore < plantegg_filter.conf" | sudo tee -a /etc/rc.d/rc.local

单独记录到日志文件中

默认情况下 iptables 日志记录在 dmesg中不方便查询，可以修改rsyslog.d规则将日志存到单独的文件中：

1
2
# cat /etc/rsyslog.d/plantegg_filter_log.conf
:msg, startswith, "[plantegg]" -/home/admin/logs/plantegg-tcp.log

将 [plantegg] 开头的日志存到对应的文件

将如上配置放到： /etc/rsyslog.d/ 目录下， 重启 rsyslog 就生效了

1
2
3
sudo cp /home/admin/plantegg-worker/install/plantegg_filter_log.conf /etc/rsyslog.d/plantegg_filter_log.conf
sudo chown -R root:root /etc/rsyslog.d/plantegg_filter_log.conf
sudo systemctl restart rsyslog

防止日志打满磁盘

配置 logrotate, 保留最近30天的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
#cat /etc/logrotate.d/drds
/home/admin/logs/drds-tcp.log
{
daily
rotate 30
copytruncate
compress
dateext
#size 1k
prerotate
/usr/bin/chattr -a /home/admin/logs/drds-tcp.log
endscript
postrotate
/usr/bin/chattr +a /home/admin/logs/drds-tcp.log
endscript
}

执行：
sudo /usr/sbin/logrotate --force --verbose /etc/logrotate.d/drds
debug：
sudo /usr/sbin/logrotate -d --verbose /etc/logrotate.d/drds
查看日志：
cat /var/lib/logrotate/logrotate.status

logrotate操作的日志需要权限正常，并且上级目录权限也要对，解决方案参考：https://chasemp.github.io/2013/07/24/su-directive-logrotate/ 报错信息：

1
2
3
4
5
6
7
rotating pattern: /var/log/myapp/*.log  weekly (4 rotations)
empty log files are rotated, old logs are removed
considering log /var/log/myapp/default.log

error: skipping "/var/log/myapp/default.log" because parent directory has insecure permissions
(It's world writable or writable by group which is not "root") Set "su" directive in
config file to tell logrotate which user/group should be used for rotation

最终效果

1
2
3
4
5
$tail -10 logs/drds-tcp.log
Apr 26 15:27:36 vb kernel: [drds] IN= OUT=eth0 SRC=10.0.186.75 DST=10.0.175.109 LEN=40 TOS=0x00 PREC=0x00 TTL=64 ID=0 DF PROTO=TCP SPT=8182 DPT=9366 SEQ=0 ACK=1747027778 WINDOW=0 RES=0x00 ACK RST URGP=0
Apr 26 15:27:36 vb kernel: [drds] IN= OUT=eth0 SRC=10.0.186.75 DST=10.0.175.109 LEN=40 TOS=0x00 PREC=0x00 TTL=64 ID=0 DF PROTO=TCP SPT=8182 DPT=9368 SEQ=0 ACK=3840170438 WINDOW=0 RES=0x00 ACK RST URGP=0
Apr 26 15:27:36 vb kernel: [drds] IN= OUT=eth0 SRC=10.0.186.75 DST=10.0.175.109 LEN=40 TOS=0x00 PREC=0x00 TTL=64 ID=0 DF PROTO=TCP SPT=8182 DPT=9370 SEQ=0 ACK=3892381139 WINDOW=0 RES=0x00 ACK RST URGP=0
Apr 26 15:27:38 vb kernel: [drds] IN= OUT=eth0 SRC=10.0.186.75 DST=10.0.171.173 LEN=40 TOS=0x00 PREC=0x00 TTL=64 ID=0 DF PROTO=TCP SPT=8182 DPT=38225 SEQ=0 ACK=1436910913 WINDOW=0 RES=0x00 ACK RST URGP=0

tracing_point 监控

对于 4.19内核的kernel，可以通过tracing point来监控重传以及reset包

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
# grep tcp:tcp /sys/kernel/debug/tracing/available_events
tcp:tcp_probe
tcp:tcp_retransmit_synack
tcp:tcp_rcv_space_adjust
tcp:tcp_destroy_sock
tcp:tcp_receive_reset
tcp:tcp_send_reset
tcp:tcp_retransmit_skb

//开启本机发出的 reset 监控，默认输出到：/sys/kernel/debug/tracing/trace_pipe
# echo 1 > /sys/kernel/debug/tracing/events/tcp/tcp_send_reset/enable

//如下是开启重传以及reset的记录，本机ip 10.0.186.140
# cat trace_pipe
//重传
          <idle>-0     [002] ..s. 9520196.657431: tcp_retransmit_skb: sport=3306 dport=62460 saddr=10.0.186.140 daddr=10.0.186.70 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.186.70
 Wisp-Root-Worke-540   [000] .... 9522308.074233: tcp_destroy_sock: sport=3306 dport=20594 saddr=10.0.186.140 daddr=10.0.186.70 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.186.70 sock_cookie=51a
 C2 CompilerThre-543   [002] ..s. 9522308.074296: tcp_destroy_sock: sport=3306 dport=20670 saddr=10.0.186.140 daddr=10.0.186.70 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.186.70 sock_cookie=574

// 被reset
  Wisp-Root-Worke-540   [002] ..s. 9522519.353756: tcp_receive_reset: sport=33822 dport=8080 saddr=10.0.186.140 daddr=10.0.171.193 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.171.193 sock_cookie=5dd
// 主动reset
     DragoonAgent-28297 [002] .... 9522433.144611: tcp_send_reset: sport=8182 dport=61783 saddr=10.0.186.140 daddr=10.0.171.174 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.171.174
  Wisp-Root-Worke-540   [002] ..s. 9522519.353773: tcp_send_reset: sport=33822 dport=8080 saddr=10.0.186.140 daddr=10.0.171.193 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.171.193

 // 3306对端中断
              cat-28727 [000] ..s. 9524341.650740: inet_sock_set_state: family=AF_INET protocol=IPPROTO_TCP sport=3306 dport=23262 saddr=10.0.186.140 daddr=10.0.186.70 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.186.70 oldstate=TCP_SYN_RECV newstate=TCP_ESTABLISHED
          <idle>-0     [000] .ns. 9524397.184608: inet_sock_set_state: family=AF_INET protocol=IPPROTO_TCP sport=3306 dport=23262 saddr=10.0.186.140 daddr=10.0.186.70 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.186.70 oldstate=TCP_ESTABLISHED newstate=TCP_CLOSE

//8182 主动关闭
          <idle>-0     [000] .Ns. 9525499.045236: inet_sock_set_state: family=AF_INET protocol=IPPROTO_TCP sport=8182 dport=25448 saddr=10.0.186.140 daddr=10.0.171.174 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.171.174 oldstate=TCP_SYN_RECV newstate=TCP_ESTABLISHED
    DragoonAgent-6240  [001] .... 9525499.118092: inet_sock_set_state: family=AF_INET protocol=IPPROTO_TCP sport=8182 dport=25448 saddr=10.0.186.140 daddr=10.0.171.174 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.171.174 oldstate=TCP_ESTABLISHED newstate=TCP_FIN_WAIT1
          <idle>-0     [000] ..s. 9525499.159032: inet_sock_set_state: family=AF_INET protocol=IPPROTO_TCP sport=8182 dport=25448 saddr=10.0.186.140 daddr=10.0.171.174 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.171.174 oldstate=TCP_FIN_WAIT1 newstate=TCP_FIN_WAIT2
          <idle>-0     [000] .Ns. 9525499.159056: inet_sock_set_state: family=AF_INET protocol=IPPROTO_TCP sport=8182 dport=25448 saddr=10.0.186.140 daddr=10.0.171.174 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.171.174 oldstate=TCP_FIN_WAIT2 newstate=TCP_CLOSE

//3306 被动关闭
          <idle>-0     [002] .Ns. 9524484.864509: inet_sock_set_state: family=AF_INET protocol=IPPROTO_TCP sport=3306 dport=23360 saddr=10.0.186.140 daddr=10.0.186.70 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.186.70 oldstate=TCP_SYN_RECV newstate=TCP_ESTABLISHED
             cat-28568 [002] ..s. 9524496.913199: inet_sock_set_state: family=AF_INET protocol=IPPROTO_TCP sport=3306 dport=23360 saddr=10.0.186.140 daddr=10.0.186.70 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.186.70 oldstate=TCP_ESTABLISHED newstate=TCP_CLOSE_WAIT
 Wisp-Root-Worke-540   [003] .... 9524496.915450: inet_sock_set_state: family=AF_INET protocol=IPPROTO_TCP sport=3306 dport=23360 saddr=10.0.186.140 daddr=10.0.186.70 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.186.70 oldstate=TCP_CLOSE_WAIT newstate=TCP_LAST_ACK
 Wisp-Root-Worke-539   [002] .Ns. 9524496.915572: inet_sock_set_state: family=AF_INET protocol=IPPROTO_TCP sport=3306 dport=23360 saddr=10.0.186.140 daddr=10.0.186.70 saddrv6=::ffff:10.0.186.140 daddrv6=::ffff:10.0.186.70 oldstate=TCP_LAST_ACK newstate=TCP_CLOSE

iptables 打通网络

1
2
//本机到 172.16.0.102 不通，但是和 47.100.29.16能通(阿里云弹性ip)
iptables -t nat -A OUTPUT -d 172.16.0.102 -j DNAT --to-destination 47.100.29.16

ipset 组合iptables使用

ipset是iptables的扩展,它允许创建匹配地址集合的规则。普通的iptables链只能单IP匹配, 进行规则匹配时，是从规则列表中从头到尾一条一条进行匹配，这像是在链表中搜索指定节点费力。ipset 提供了把这个 O(n) 的操作变成 O(1) 的方法：就是把要处理的 IP 放进一个集合，对这个集合设置一条 iptables 规则。像 iptable 一样，IP sets 是 Linux 内核提供，ipset 这个命令是对它进行操作的一个工具。
另外ipset的一个优势是集合可以动态的修改，即使ipset的iptables规则目前已经启动，新加的入ipset的ip也生效。

ipset可以以set的形式管理大批IP以及IP段，set可以有多个，通过 ipset修改set后可以立即生效。不用再次修改iptables规则。k8s也会用ipset来管理ip集合

ipset is an extension to iptables that allows you to create firewall rules that match entire “sets” of addresses at once. Unlike normal iptables chains, which are stored and traversed linearly, IP sets are stored in indexed data structures, making lookups very efficient, even when dealing with large sets.

接下来用一个ip+port的白名单案例来展示他们的用法，ipset负责白名单，iptables负责拦截规则：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
  240  [2021-11-30 19:57:10] ipset list drds_whitelist_ips |grep "^127.0."
  241  [2021-11-30 19:57:27] ipset del drds_whitelist_ips 127.0.0.1 //从set删除ip
  248  [2021-11-30 19:58:50] ipset list drds_whitelist_ips |grep "^11.1.2"
  249  [2021-11-30 19:59:05] ipset del drds_whitelist_ips 11.1.2.30

#timeout 259200是集合内新增的IP有三天的寿命
ipset create myset hash:net timeout 259200

ipset list drds_whitelist_ips             //列出set中的所有ip、ip段
ipset add drds_whitelist_ips 100.1.2.0/24 //从set中增加ip段

iptables -I INPUT 1 -p tcp  -j drds_whitelist //创建新规则链drds_whitelist，所有tcp流入的包都跳转到 drds_whitelist规则
//有了以上drds_whitelist_ips这个名单, 接下来可以在iptables规则中使用这个set了
//在第一行增加规则：访问端口1234的tcp请求走规则 drds_whitelist
iptables -I INPUT 1 -p tcp --dport 1234 -j drds_whitelist

//规则drds_whitelist 添加如下三条
//第一条白名单中的来源ip访问1234就ACCEPT，不再走后面的. 关键的白名单列表就取自ipset中的drds_whitelist_ips
iptables -A drds_whitelist -m set --match-set drds_whitelist_ips src -p tcp --dport 1234 -j ACCEPT

//同规则1，记录日志，走到这里说明规则1没生效，那么就是黑名单要拦截的了
iptables -A drds_whitelist -p tcp --dport 1234 -j LOG --log-prefix '[drds_reject] ' --log-level 7 --log-tcp-sequence --log-tcp-options --log-ip-options
//拦截
iptables -A drds_whitelist -p tcp --dport 1234 -j REJECT --reject-with icmp-host-prohibited

经过如上操作后，可以得到iptables规则如下

1
2
3
4
5
6
7
8
9
10
#iptables -L -n --line-numbers
Chain INPUT (policy ACCEPT)
target     prot opt source               destination
drds_whitelist  tcp  --  0.0.0.0/0            0.0.0.0/0           tcp dpt:1234

Chain drds_whitelist (1 references)
target     prot opt source               destination
1    ACCEPT     tcp  --  0.0.0.0/0            0.0.0.0/0           match-set drds_whitelist_ips src tcp dpt:80
2    LOG        tcp  --  0.0.0.0/0            0.0.0.0/0           tcp dpt:1234 LOG flags 7 level 7 prefix `[drds_reject] ` --log-level 7 --log-tcp-sequence --log-tcp-options --log-ip-options '
3    REJECT     tcp  --  0.0.0.0/0            0.0.0.0/0           tcp dpt:1234 reject-with icmp-host-prohibited

从以上Chain drds_whitelist中删除第三条规则

1
iptables -D drds_whitelist 3

block ip 案例

模拟断网测试的时候可以通过iptables固定屏蔽某几个ip来实现。

创建ipset，存放好需要block的ip列表

1
2
ipset create block_ips hash:net timeout 259200
ipset add block_ips 10.176.2.245

添加iptables过滤规则，规则中不需要列出一堆ip，只需要指定上一步创建好的ipset，以后屏蔽、放开某些ip不需要修改iptables规则了，只需要往ipset添加、删除目标ip

1
2
3
4
5
6
7
iptables -N drds_rule //创建新规则链

iptables -I INPUT 1 -m set --match-set block_ips src  -p tcp  -j drds_rule  //命中就跳转到drds_rule
//这条可有可无，记录日志，方便调试
iptables -I drds_rule -m set --match-set block_ips src -j LOG --log-prefix '[drds_reject] ' --log-level 7 --log-tcp-sequence --log-tcp-options --log-ip-options

iptables -A drds_rule -m set --match-set block_ips src -p tcp  -j REJECT --reject-with icmp-host-prohibited

iptables记录日志

记录每个新连接创建的时间，日志在/var/log/kern或者/var/log/dmesg中：

1
2
3
4
5
iptables -I INPUT -m state --state NEW -j LOG --log-prefix "Connection In: "
iptables -I OUTPUT -m state --state NEW -j LOG --log-prefix "Connection Out: "

//检查包，记录invalid包到日志中
iptables -A INPUT -m conntrack --ctstate INVALID -m limit --limit 1/sec   -j LOG --log-prefix "invalid: " --log-level 7

在宿主机上执行，然后在dmesg中能看到包的传递流程。只有raw有TRACE能力，nat、filter、mangle都没有。这个方式对性能影响非常大，时延高（增加1秒左右）

1
2
iptables -t raw -A OUTPUT -p icmp -j TRACE
iptables -t raw -A PREROUTING -p icmp -j TRACE

端口转发

iptables

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
iptables -t nat -A PREROUTING -d 10.176.7.5 -p tcp --dport 8507 -j DNAT --to-destination 10.176.7.6:3307
iptables -t nat -D PREROUTING  -p tcp --dport 18080 -j DNAT --to-destination 10.176.7.245:8080

#将访问8022端口的进出流量转发到22端口
iptables -t nat -A PREROUTING -p tcp --dport 8022 -j REDIRECT --to-ports 22
iptables -t nat -A PREROUTING -p tcp --dport 8507 -j REDIRECT --to-ports 3307

#将本机的端口转发到其他机器
iptables -t nat -A PREROUTING -d 192.168.172.130 -p tcp --dport 8000 -j DNAT --to-destination 192.168.172.131:80
#将192.168.172.131:80 端口将数据返回给客户端时，将源ip改为192.168.172.130
iptables -t nat -A POSTROUTING -d 192.168.172.131 -p tcp --dport 80 -j SNAT --to 192.168.172.130

#ip 转发，做完转发后netstat能看到两条连接
sudo iptables -t nat -A OUTPUT -d 100.69.170.27 -j DNAT --to-destination 127.0.0.1

/sbin/iptables -t nat -I PREROUTING -d 23.27.6.15 -j DNAT --to-destination 45.61.255.176
/sbin/iptables -t nat -I POSTROUTING -d 45.61.255.176 -j SNAT --to-source 23.27.6.15
/sbin/iptables -t nat -I POSTROUTING -s 45.61.255.176 -j SNAT --to-source 23.27.6.15


#清空nat表的所有链
iptables -t nat -F PREROUTING

#禁止访问某个端口
iptables -A OUTPUT -p tcp --dport 31165 -j DROP

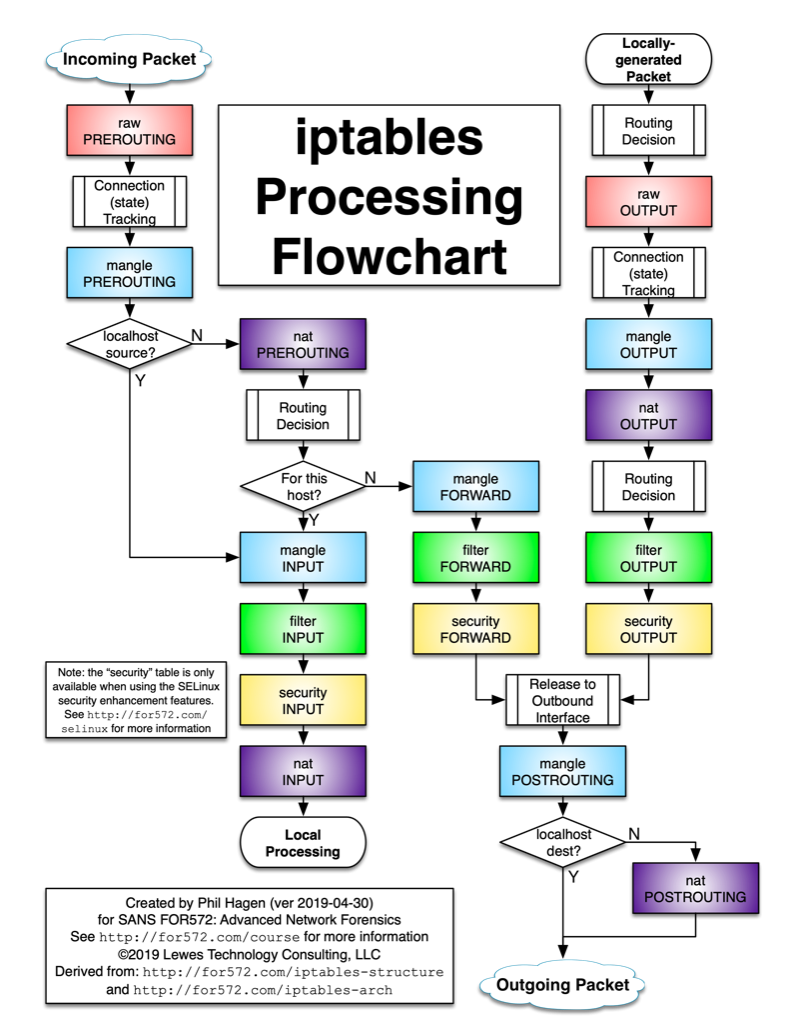

iptables 工作图如下，进来的包走1、2；出去的包走4、5；转发的包走1、3、5


ncat端口转发

1
2
监听本机 9876 端口，将数据转发到 192.168.172.131的 80 端口
ncat --sh-exec "ncat 192.168.172.131 80" -l 9876  --keep-open

scat

1
2
在本地监听12345端口，并将请求转发至192.168.172.131的22端口。
socat TCP4-LISTEN:12345,reuseaddr,fork TCP4:192.168.172.131:22

iptables 屏蔽IP

一分钟内新建22端口连接超过 4 次，不分密码对错, 直接 block.

1
2
3
4
5
6
7
8
9
10
11
12
iptables -A INPUT -p tcp -m tcp --dport 22 -m state --state NEW -m recent --set --name SSH --rsource
iptables -A INPUT -p tcp -m tcp --dport 22 -m state --state NEW -m recent --update --seconds 60 --hitcount 4 --name SSH --rsource -j DROP

或者 block 掉暴力破解 ssh 的 IP
grep "Failed" /var/log/auth.log | \
     awk '{print $(NF-3)}' | \
     sort | uniq -c | sort -n | \
     awk '{if ($1>100) print $2}' | \
     xargs -I {} iptables -A INPUT -s {} -j DROP

iptables -A INPUT  -p tcp --sport 3306 -j DROP
iptables -A OUTPUT -p tcp --dport 3306 -j DROP

Per-IP rate limiting with iptables

iptables 常用参数

-I : Insert rule at given rule number

-t : Specifies the packet matching table such as nat, filter, security, mangle, and raw.

-L : List info for specific chain (such as INPUT/FORWARD/OUTPUT) of given packet matching table

–line-numbers : See firewall rules with line numbers

-n : Do not resolve names using dns i.e. only show numeric output for IP address and port numbers.

-v : Verbose output. This option makes the list command show the interface name, the rule options (if any), and the TOS masks

NetFilter Hooks

下面几个 hook 是内核协议栈中已经定义好的：

  • NF_IP_PRE_ROUTING: 接收到的包进入协议栈后立即触发此 hook，在进行任何路由判断 （将包发往哪里）之前
  • NF_IP_LOCAL_IN: 接收到的包经过路由判断，如果目的是本机，将触发此 hook
  • NF_IP_FORWARD: 接收到的包经过路由判断，如果目的是其他机器，将触发此 hook
  • NF_IP_LOCAL_OUT: 本机产生的准备发送的包，在进入协议栈后立即触发此 hook
  • NF_IP_POST_ROUTING: 本机产生的准备发送的包或者转发的包，在经过路由判断之后， 将触发此 hook

IPTables 表和链（Tables and Chains）

下面可以看出，内置的 chain 名字和 netfilter hook 名字是一一对应的：

  • PREROUTING: 由 NF_IP_PRE_ROUTING hook 触发
  • INPUT: 由 NF_IP_LOCAL_IN hook 触发
  • FORWARD: 由 NF_IP_FORWARD hook 触发
  • OUTPUT: 由 NF_IP_LOCAL_OUT hook 触发
  • POSTROUTING: 由 NF_IP_POST_ROUTING hook 触发

如果没有匹配到任何规则那么执行默认规则。下面括号中的policy

1
2
3
4
#iptables -L | grep policy
Chain INPUT (policy ACCEPT)
Chain FORWARD (policy ACCEPT)
Chain OUTPUT (policy ACCEPT)

If you would rather deny all connections and manually specify which ones you want to allow to connect, you should change the default policy of your chains to drop. Doing this would probably only be useful for servers that contain sensitive information and only ever have the same IP addresses connect to them.

1
2
3
4
> iptables --policy INPUT DROP`
> `iptables --policy OUTPUT DROP`
> `iptables --policy FORWARD DROP
>

iptables规则对性能的影响

蓝色是iptables规则数量，不过如果规则内容差不多，只是ip不一样，完全可以用ipset将他们合并到一条或者几条规则，从而提升性能

image-20220521141020452

参考资料

深入理解 iptables 和 netfilter 架构

NAT - 网络地址转换（2016）

通过iptables 来控制每个ip的流量

iptables 实用教程
